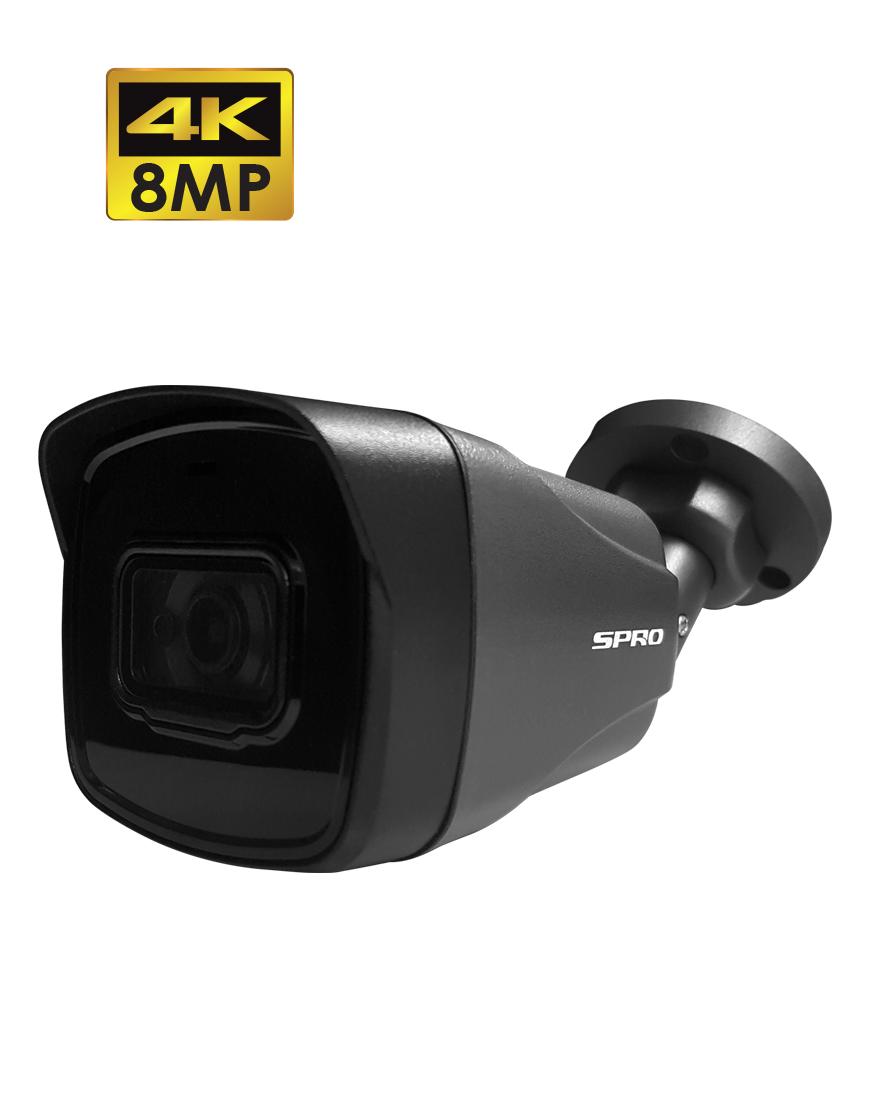

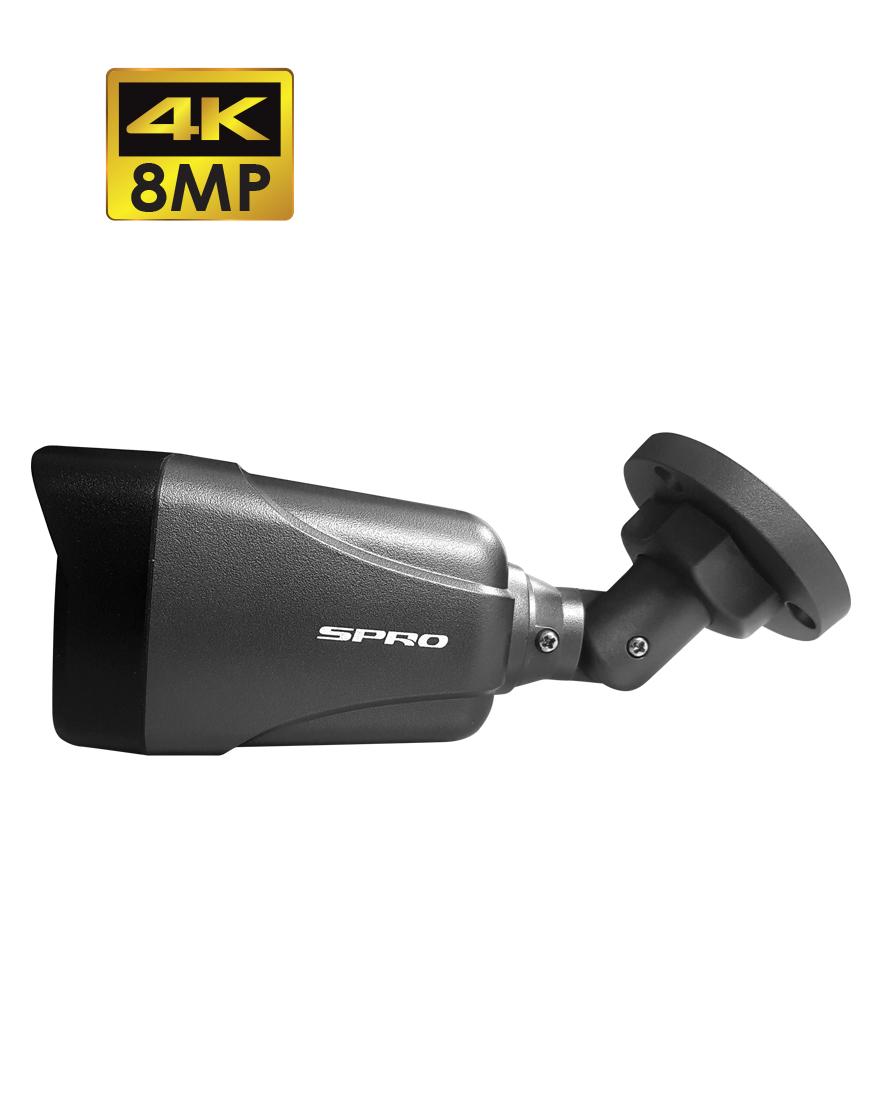

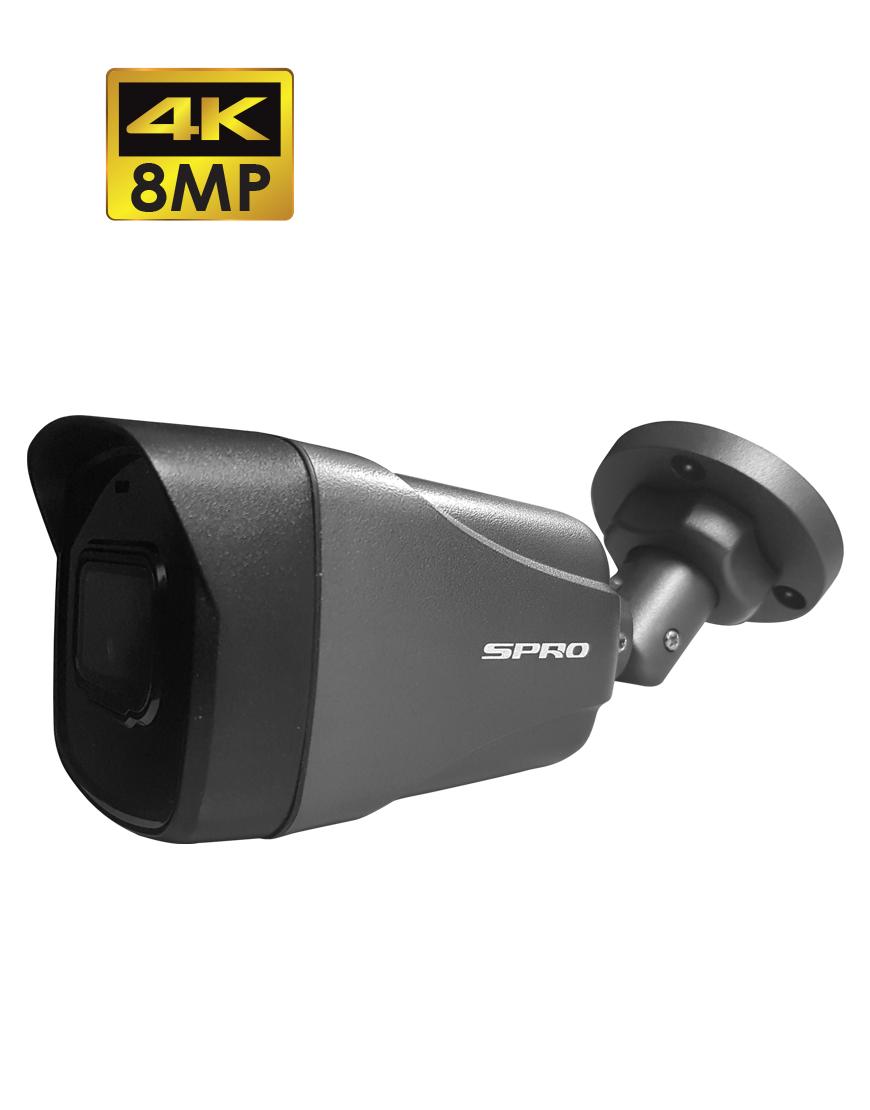

The SPRO 8MP 4in1 Fixed Lens Bullet Camera showcases a fixed lens, capturing impeccable details with up to 80m IR reach. Designed for resilience, it’s encased in an IP66 waterproof shell, ensuring it stands up to challenging environments.
| Specifications: | |
|---|---|
| Model Number | DHQ80/28RG/80M-4 |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 3840(H)×2160(V), 8MP |
| Electronic Shutter Speed | 1/3s~1/100000s |
| Min. Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| Max. IR distance | Up to 80m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max Aperture | F2.0 |
| Angle of View | 125°×105°×56° (diagonal× horizontal× vertical) |
| Iris type | Fixed Iris |
| Close Focus Distance | 1m |
| DORI Distance | Detect: 75m │ Observe: 30m │ Recognize: 15m │ Identify: 8m |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan:0˚~360˚ / Tilt: 0° ~ 90° / Rotation: 0° ~ 360° |
| Video | |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| Frame Rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps, CVBS: PAL/NTSC AHD: 4K@15fps; 5M@20fps; 4M@25fps TVI: 4K@15fps; 5M@20fps; 4M@25fps |
| Day/Night | Auto (ICR) / Manual |
| BLC Mode | BLC / HLC / DWDR |
| WDR | 120dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D & 3D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 4x |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 Area, Rectangle) |
| Port | |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| General | |
| Power Supply | DC12V±30% |
| Power Consumption | Max 6.6W (12V DC, IR on) |
| Operating Conditions | -30°C ~ +60°C / Less than 90% RH |
| Strorage Conditions | -30°C ~ +60°C / Less than 90% RH |
| Ingress Protection | IP67 |
| Casing | Metal front cover + plastic main body |
| Dimensions | 244mm×90mm×90mm (9.61″×3.5″×23.5″) |
| Net Weight | 0.42kg (0.93lb) |
| Gross Weight | 0.53kg (1.17lb) |
